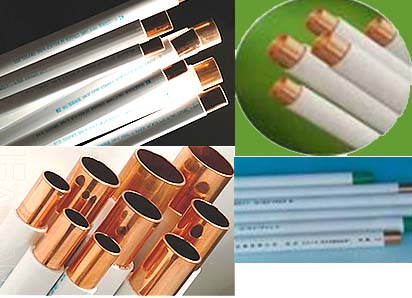

Plastics-coated Copper Pipe

Standard of products: The products are supplied of the length of 2.9 meters or 5.8 meters according to EN1057 orASTM B88.   Installation of tubes: Soldering-type or compressed tubes are recommended. Standard of fittings: Hailiang plastic-coated copper tube fittings are made according to British standard BSB64-1983,GB/T1168-1999,ASME B16 22-2001 Application: Fluid transmission of cool and hot water,dinking water,facillities health,construcion.cooling and heating,anti-dew and anti-freezing in the transmission process.

PLASTIC-COATED COPPER TUBES ARE MADE ACCOREDING TO EN1057 OR ASTM B88

DN (mm) OD (mm) Thickness (mm) Grear-shaped loop (mm) Praallel loop (mm) Foam (mm) Maximum debiation (mm) Length Maximum debiation 15    15 0.7 18.6 17 21.5 0.20 2.9 ~ 5.8 0 to +10 20      22 0.9 25.6 24 28.5 25    28 31.6 30   32    35 1.2   37.6   0.30 40    42   44.6   50    54   56.8   0.40 65    67   69.8   80    76 1.5   78.8   0.50
