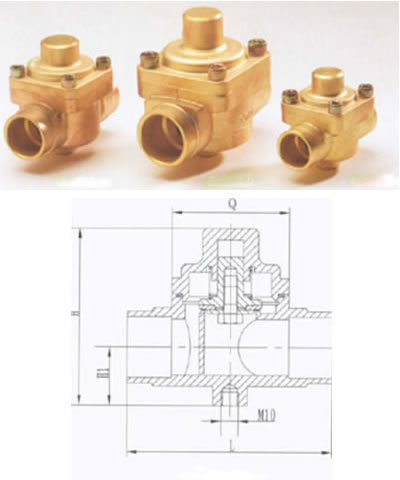

BIP Series plunger single directional valve can open and close by itself, which can be installed in commercial refrigeration system, civil and industrial conditional equipments.
|
TYPE |
ODF Connection only |
H |
H1 |
L |
Q |
|
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
|
BIP-3120/7 |
7/8 |
22.4 |
3.3 |
84.5 |
1.1 |
28.5 |
3.9 |
100 |
2.4 |
60 |
|
BIP-3120/9 |
1-1/8 |
28.8 |
3.3 |
84.5 |
1.1 |
28.5 |
3.9 |
100 |
2.4 |
60 |
|
BIP-3120/11 |
1-3/8 |
35.0 |
4.0 |
101.5 |
1.3 |
34 |
4.6 |
118 |
2.8 |
68 |
|
BIP-3120/13 |
1-5/8 |
42.0 |
4.9 |
125.5 |
1.5 |
37 |
5.6 |
141 |
3.5 |
88 |
|
BIP-3120/17 |
2-1/8 |
54.0 |
5.6 |
142 |
1.7 |
42.5 |
6.8 |
173 |
4.1 |
104 | |
