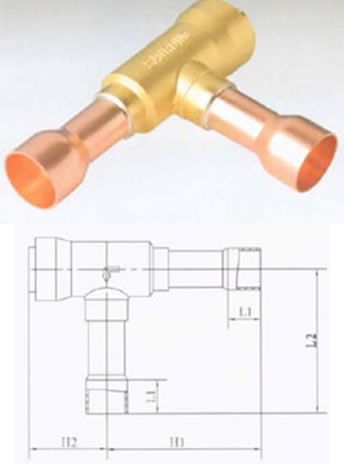

BIV Right angle check valves are used in fluoride refrigeration and air-conditioning system, which are on the pipe line of the liquid, suction and hot gas, this product is designed to fix an reduced vibration piston to put inside, so as to erect the check valve on the exhausting pipe line of compressor with pressure impulse.
|
TYPE |
ODF Connection only |
H1 |
H2 |
L1 |
L2 |
D |
|
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
|
BIV22s-07 |
7/8 |
22.4 |
3.7 |
94 |
1.8 |
47 |
0.7 |
17 |
3.5 |
88 |
1.4 |
36 |
|
BIV22s-09 |
1-1/8 |
28.8 |
3.7 |
94 |
1.8 |
47 |
0.8 |
22 |
3.5 |
88 |
1.4 |
36 |
|
BIV28s-09 |
1-1/8 |
28.8 |
5.6 |
141 |
2.5 |
65 |
0.8 |
22 |
4.8 |
123 |
1.9 |
48 |
|
BIV28s-11 |
1-3/8 |
35.0 |
5.6 |
141 |
2.5 |
65 |
1.0 |
25 |
4.8 |
123 |
1.9 |
48 |
|
BIV35s-11 |
1-3/8 |
35.0 |
5.6 |
141 |
2.5 |
65 |
1.0 |
25 |
4.8 |
123 |
1.9 |
48 |
|
BIV35s-13 |
1-5/8 |
42.0 |
5.6 |
141 |
2.5 |
65 |
1.1 |
29 |
4.8 |
123 |
1.9 |
48 | |
